Code Generator

Will5/1/26About 6 min

Overview

QiLuo includes a built-in Code Generator that scans Entity files generated by sea-orm-cli and automatically produces complete backend and frontend CRUD code, dramatically reducing repetitive work.

Core Capabilities:

🦀 Backend Generation: Args definitions, Model database operations, Service route handlers, API route fragments, mod.rs declarations
🖥️ Frontend Generation: API request wrappers, list View page, Write form component, Detail display component, i18n translation snippets
⚙️ Field Configuration: Visual configuration of field visibility in list/search/form/detail, sorting, component types, validation rules
🔗 Relations: Auto-detects BelongsTo relations, generates Select dropdowns and associated data loading code
🔒 Data Scope: Detects dept_id + owner_id fields, enables data isolation with one click
📤 Upload Component: Auto-detects image fields, generates Upload components and upload handling code

Quick Start

Prerequisites

Generate Entity files using sea-orm-cli generate entity (located in src/model/{module}/entity/)
Ensure the backend service is running (the code generator calls backend scan/generate APIs)

Steps

Log into the admin panel, navigate to Tools → Code Generator
Click the Scan button to scan all module Entity files
Find the target entity in the scan results, click the Config button
Adjust field display, components, validation, etc. in the configuration dialog

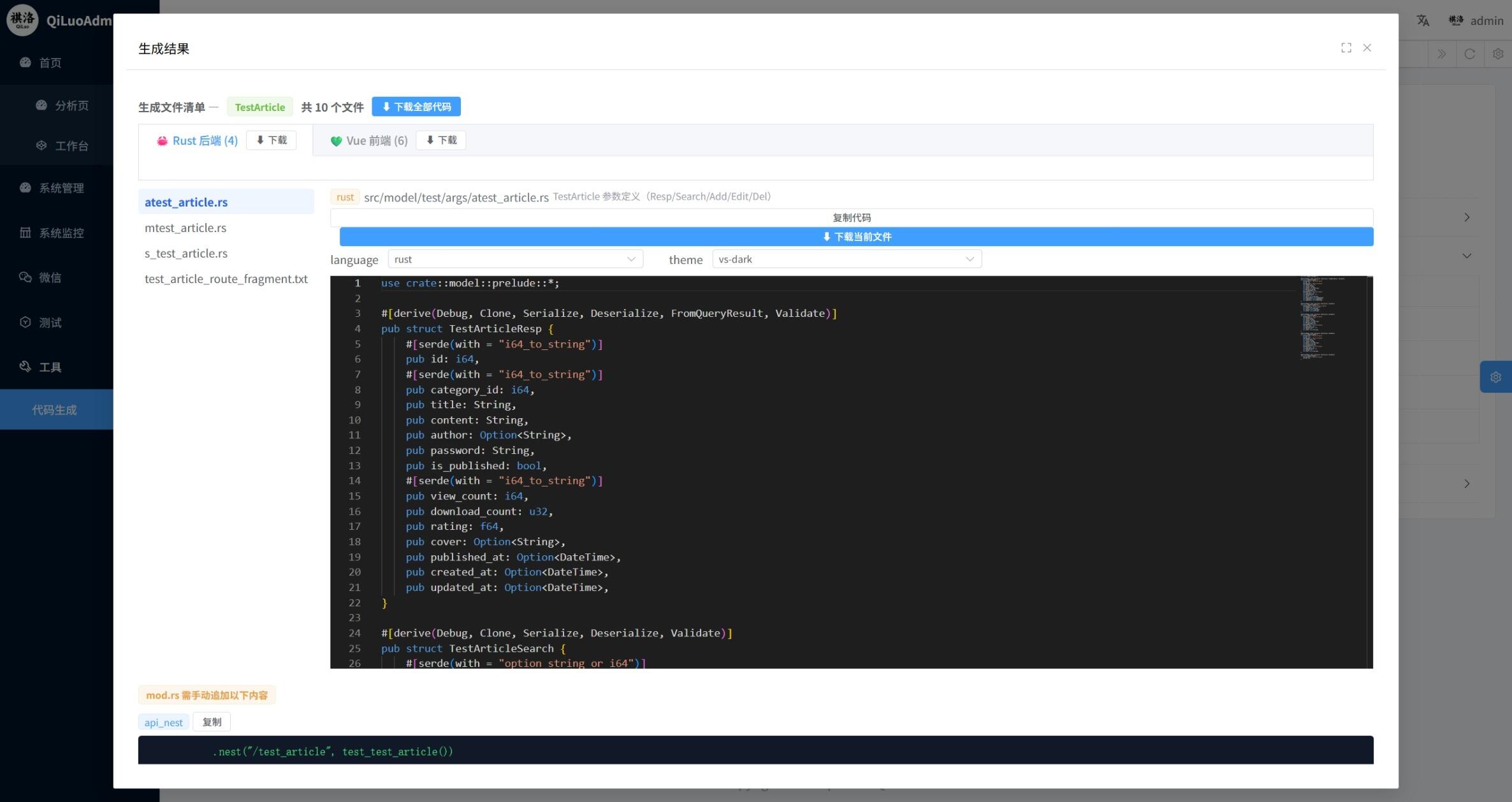

Click Confirm Generate to view the generated code
Download or copy the generated code and place it in the corresponding project directories

Generated Files

Backend Files (Rust)

#	File	Path Template	Description
1	Args	`src/model/{module}/args/{entity}.rs`	Parameter definitions: Resp / Search / Add / Edit / Del
2	Model	`src/model/{module}/model/{entity}.rs`	Database operations: list / add / edit / del
3	Service	`src/service/{module}/{entity}.rs`	Route handler functions
4	API Route Fragment	`src/api/{table}_route_fragment.txt`	Route registration function fragment (manual merge required)
5	API Nest Fragment	`mod_updates`	`.nest()` route mounting fragment (manual merge required)
6	mod Declaration	`mod_updates`	`pub mod` declarations for model/args/service (manual merge required)

Frontend Files (Vue/TypeScript)

#	File	Path Template	Description
7	API	`src/api/{module}.ts`	API request wrapper (list/add/edit/del)
8	View	`src/views/{Module}/{entity}/{entity}.vue`	List page (with search, table, dialog)
9	Write	`src/views/{Module}/{entity}/components/Write.vue`	Form component (add/edit)
10	Detail	`src/views/{Module}/{entity}/components/Detail.vue`	Detail display component
11	Chinese i18n	`src/locales/menuuser.zh-CN.snippet.json`	Chinese translation snippet (merge into locale file)
12	English i18n	`src/locales/menuuser.en.snippet.json`	English translation snippet (merge into locale file)

Field Configuration

The code generator configuration dialog includes four tabs:

📋 List Configuration

Controls field display behavior in the list page:

Setting	Description	Default
Show	Whether to display in table column	Non-primary key fields default to shown
Sortable	Whether to support click-to-sort	Default off
Sort Priority	Sort weight; higher value = higher priority	0 (not in default sort)
Sort Direction	Ascending `asc` or descending `desc`	`desc`

Default Sort Rules:

sort / order_num / sort_order fields: highest priority, direction asc
weight / priority fields: second priority, direction desc
Other fields: no default sort, configured manually by user

🔍 Search Configuration

Setting	Description	Default
Search	Whether to use as a search condition	Default off
Component	Component type for search form	Auto-inferred

Search fields only apply to String / Option<String> types. String searches use contains (fuzzy match), other types use eq (exact match).

📝 Form Configuration

Setting	Description	Default
Form	Whether to show in add/edit form	Non-primary key fields default to shown
Component	Component type for form	Auto-inferred
Required	Whether the field is required	Non-optional fields default to required
Min Length	String minimum length validation	—
Max Length	String maximum length validation	—
Pattern	Regex pattern validation	—
Pattern Message	Regex validation failure message	—

📖 Detail Configuration

Setting	Description	Default
Detail	Whether to show on detail page	Default shown

Component Type Inference

The code generator automatically infers frontend components based on field names and Rust types:

Inference Rule	Component	Example Fields
Field name ends with `_at` or `created_at` / `updated_at`	DatePicker	`created_at`
Field name contains `image` / `img` / `avatar` / `cover` / `pic` / `photo` / `thumbnail`	Upload	`cover`, `avatar`
Field name is `password`	InputPassword	`password`
Field name ends with `_id` (foreign key)	Select	`role_id`, `dept_id`
Field name is `status` / `type` / `kind` / `category` / `level`, etc.	Select	`status`, `type`
Field name is `gender` / `sex`	Radio	`sex`
Field name is `sort` / `weight` / `priority`, etc.	InputNumber	`sort_order`
Rust type `i32` / `u32` / `f32` / `f64`	InputNumber	—
Rust type `i64` / `u64`	Input	—
Rust type `bool`	Switch	—
Rust type `String` and field name contains `remark` / `content` / `description`	InputTextarea	`remark`
Rust type `String`	Input	—
Rust type `DateTime`, etc.	DatePicker	—

Supported component types (selectable in configuration):

Component	Description
Input	Text input
InputNumber	Number input
Select	Dropdown select
Radio	Radio button
Checkbox	Checkbox
Switch	Switch toggle
InputPassword	Password input
DatePicker	Date picker
TimePicker	Time picker
DateTimePicker	Date-time picker
Upload	File upload
Textarea	Textarea

Relation Handling

BelongsTo Relations

When an Entity defines a BelongsTo relation (e.g., foreign key role_id referencing sys_role), the code generator will:

Auto-detect: Parse the Entity's Relation enum to extract BelongsTo relation info
Component inference: Automatically set the foreign key field component to Select
Generate relation API calls: Auto-generate list requests for the related table in the View
Generate dropdown loading: Auto-load Select options from the related table in Write.vue
Display field inference: Auto-infer the display field based on the target table name (e.g., sys_role → role_name, sys_dict_type → dict_name)

Inference rule examples:

Target Table	Inferred Display Field
`sys_role`	`role_name`
`sys_dict_type`	`dict_name`
`sys_dept`	`dept_name`
`sys_user`	`username`
Other	`{target}_name`

In the field configuration, you can manually override relation_target and relation_display_field.

Data Scope

When an entity contains both dept_id and owner_id fields, the code generator auto-detects and provides a Data Isolation toggle:

When enabled, it generates code using TEMPLATE_MODEL_DATA_SCOPE and TEMPLATE_SERVICE_DATA_SCOPE templates
Model layer list / add / edit / del operations automatically inject department permission filtering
Service layer passes UserInfo for permission verification

Upload Component

When a field name contains image-related keywords (image / img / avatar / cover / pic / photo / thumbnail):

Write.vue auto-generates Upload component configuration
Auto-imports ElMessage and useUserStore
Auto-generates upload-related watch and submit handling code
View.vue list page uses ElImage component for image field thumbnail display

i18n Translations

The code generator auto-generates Chinese and English translation snippets for each entity, including labels for all fields:

Chinese: Auto-infers Chinese labels (e.g., dict_name → 字典名称, created_at → 创建时间)
English: Auto-infers English labels (e.g., dict_name → Dict Name, created_at → Created At)

Generated translation snippets need to be manually merged into the language files under src/locales/.

Common field Chinese label inference:

Field Pattern	Chinese Label
`id`	ID
`name` / `*_name`	名称
`title` / `*_title`	标题
`status` / `*_status`	状态
`sort` / `*_sort`	排序
`remark` / `*_remark`	备注
`created_at`	创建时间
`updated_at`	更新时间
`dept_id`	部门
`owner_id`	所有者
`cover` / `image` / `avatar`	封面/图片/头像

Code Merge Guide

After generating code, you need to manually merge the following into the project:

1. Backend mod.rs Declarations

Add declarations from mod_updates to the corresponding mod.rs files:

// src/model/{module}/args/mod.rs
pub mod {entity};

// src/model/{module}/model/mod.rs
pub mod {entity};

// src/service/{module}.rs
pub mod {entity};

2. API Route Registration

Merge route function and nest fragments into src/api/{module}.rs:

// Route function
fn {module}_{entity}(router: Router) -> Router {
    router
        .route("/list", WebPathType::Get, Some("List {model_name}"), get({service}::list))
        .route("/edit", WebPathType::Put, Some("Edit {model_name}"), put({service}::edit))
        .route("/add", WebPathType::Post, Some("Add {model_name}"), post({service}::add))
        .route("/del", WebPathType::Delete, Some("Delete {model_name}"), delete({service}::delete))
}

// Nest registration
.nest("/{entity}", {module}_{entity}(Router::new()))

3. Frontend i18n

Merge translation snippets into the menuuser object in src/locales/zh-CN.ts and src/en.ts.

4. Service File Note

If a Service file already exists (may contain hand-written route functions), the code generator will skip it to avoid overwriting custom code.

Configuration Persistence

Field configuration can be saved to the backend. When you click Confirm Generate, the current configuration is automatically saved. Next time you open the configuration dialog for the same entity, the saved configuration will be auto-loaded.

Save API: SaveFieldConfig, Load API: LoadFieldConfig, keyed by module_name + table_name.

Backend Architecture

The code generator backend core is located in src/common/codegen/:

File	Description
`mod.rs`	Module entry
`parser.rs`	Entity parser — parses SeaORM Entity files, extracts field info and relations
`generator.rs`	Code generation engine — builds template context, renders all templates
`templates.rs`	Backend inline templates (Args, Model, Service, API routes, etc.)
`tera_templates/`	Frontend Tera template directory

Core Data Structures:

// Entity information
pub struct EntityInfo {
    pub table_name: String,       // Table name, e.g., test_api
    pub module_name: String,      // Module name, e.g., test
    pub model_name: String,       // PascalCase name, e.g., TestApi
    pub primary_key: String,      // Primary key field name
    pub fields: Vec<FieldInfo>,   // All fields
    pub searchable_fields: Vec<FieldInfo>,  // Searchable fields
    pub list_fields: Vec<FieldInfo>,        // List display fields
    pub form_fields: Vec<FieldInfo>,        // Form fields
    pub detail_fields: Vec<FieldInfo>,      // Detail page fields
    pub relations: Vec<RelationInfo>,       // Relations
    pub belongs_to_fields: Vec<FieldInfo>,  // BelongsTo fields
    pub has_data_scope: bool,               // Whether data scope is supported
}

// Field information
pub struct FieldInfo {
    pub name: String,              // snake_case field name
    pub rust_type: String,         // Rust type
    pub is_primary_key: bool,      // Is primary key
    pub is_optional: bool,         // Is Optional
    pub frontend_component: String, // Inferred frontend component
    pub show_in_list: bool,        // Show in list
    pub show_in_search: bool,      // Show in search
    pub show_in_form: bool,        // Show in form
    pub sortable: bool,            // Is sortable
    pub relation: Option<RelationInfo>, // Relation info
}

// Field configuration (user-defined)
pub struct FieldConfig {
    pub field_name: String,
    pub show_in_list: bool,
    pub show_in_search: bool,
    pub show_in_form: bool,
    pub show_in_detail: bool,
    pub component: Option<String>,     // Override component type
    pub sortable: Option<bool>,
    pub sort_priority: Option<i32>,
    pub sort_order: Option<String>,
    pub label: Option<String>,         // Override translation label
    pub required: Option<bool>,
    pub min_length: Option<i32>,
    pub max_length: Option<i32>,
    pub pattern: Option<String>,
    pub pattern_message: Option<String>,
    pub relation_target: Option<String>,
    pub relation_display_field: Option<String>,
}
